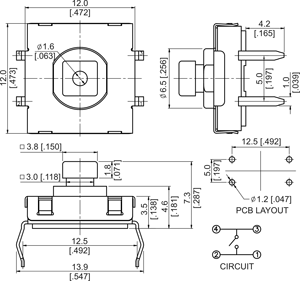

12 x 12mm through hole switch, square stem
|
|
Part number
|
Color of stem / Operating force
|
|
|
3SW/TSHW24N
|
BROWN / 160gf
|
|
3SW/TSHW24R
|
RED / 260gf
|
|
3SW/TSHW24S
|
SALMON / 320gf
|
|
3SW/TSHW24Y
|
YELLOW / 520gf
|
|
12 x 12mm surface mount switch, square stem
|
|
Part number
|
Color of stem / Operating force
|
|
|
3SW/TSMW24N
|
BROWN / 160gf
|
|
3SW/TSMW24R
|
RED / 260gf
|
|
3SW/TSMW24S
|
SALMON / 320gf
|
|
3SW/TSMW24Y
|
YELLOW / 520gf
|
|

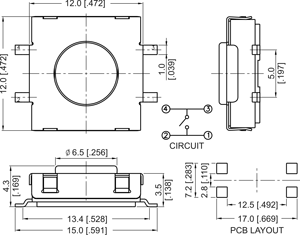

12 x 12mm surface mount switch, round stem
|
|
Part number
|
Color of stem / Operating force
|
|
|
3SW/TSMW21K
|
BLACK / 100gf
BROWN / 160gf
RED / 260gf
SALMON / 320gf
YELLOW / 520gf
|
|
3SW/TSMW21N
|
|
3SW/TSMW21R
|
|
3SW/TSMW21S
|
|
3SW/TSMW21Y
|
|
12 x 12mm through hole switch, round stem
|
|
Part number
|
Color of stem / Operating force
|
|
|
3SW/TSHW21N
|
BROWN / 160gf
|
|
3SW/TSHW21R
|
RED / 260gf
|
|
3SW/TSHW21S
|
SALMON / 320gf
|
|
3SW/TSHW21Y
|
YELLOW / 520gf
|
|
|
|
|
|
Specification
|
|
Rating
|
50mA @12V DC
|
Operating Temperature
|
-40°C to +80°C
|
|
Contact Resistance
|
100mOhm max
|
Life
|
1,000,000 min
|
|
Insulation Resistance
|
100MOhm min @500V DC
|
Cover
|
Stainless steel
|
|
Dielectric Strengh
|
250V AC/minute
|
Base
|
Nylon, UL94V-0, black
|
|
Operating Force
|
100/160/260/320/520gf
|
Stem
|
Nylon, UL94V-0
|
|
Stroke
|
0.35mm
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
