Tact Switch #  21

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

100,000 min

Insulation resistance

100MOhm min @500V DC

Cover

Stainless steel

Dielectric strengh

250V AC/minute

Base

Nylon, UL 94V-0, black

Operating force

Slide push = 220gf
Vertical push = 160gf

Stem

Nylon, UL 94V-0, black

Stroke

Slide push = 0.3mm
Vertical push = 0.2mm

Terminal

Brass, silver plated

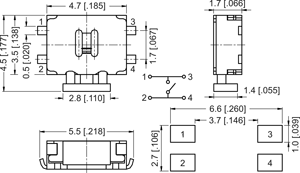

3.5 x 4.7 side push switch, bending terminals, w/o post

3.5 x 4.7 side push switch, bending terminals, with post

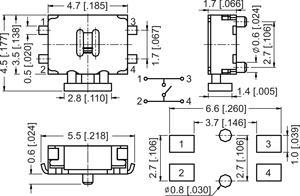

Part number:   3SW/TPTL

Part number:   3SW/TPTCL

3.5 x 4.7 side push switch, flat terminals, w/o post

3.5 x 4.7 side push switch, flat terminals, with post

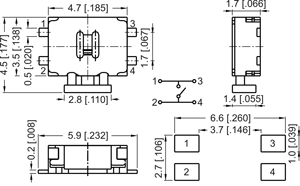

Part number:   3SW/TPTF

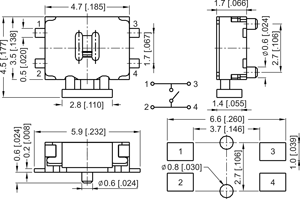

Part number:   3SW/TPTCF

3.5 x 4.7 side push switch, flat terminals, grounded, with post

3.5 x 4.7 vertical push switch, bending terminals, grounded, with post

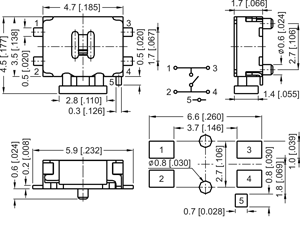

Part number:   3SW/TPTCFG

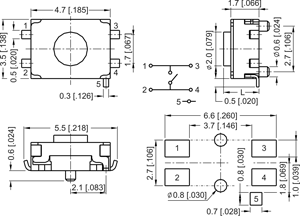

Part number:   3SW/TPTCLG
