Specifications

Rating

50mA @12V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

500,000 min

Insulation resistance

100MOhm min @500V DC

Cover

Ni silver

Dielectric strengh

250V AC/minute

Base

Nylon, UL94V-0, black

Operating force

180/260gf

Stem

Silicone rubber

Stroke

0.45mm

Terminal

Brass, silver plated

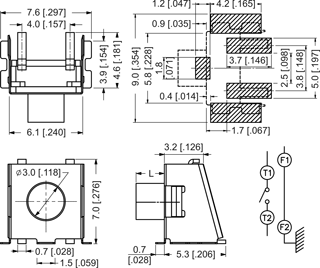

6 x 6mm right angle SMT switch, with suppoting terminal

Part number

Dim “L”
(mm)

3SW/TTAS60 Operating force/steam color N = 180gf/brown R = 260gf/red

0

3SW/TTAS61 Operating force/steam color N = 180gf/brown R = 260gf/red

0.8

3SW/TTAS62 Operating force/steam color N = 180gf/brown R = 260gf/red

1.0

3SW/TTAS63 Operating force/steam color N = 180gf/brown R = 260gf/red

2.35

3SW/TTAS64 Operating force/steam color N = 180gf/brown R = 260gf/red

3.3

6 x 6mm right angle SMT switch, without suppoting terminal

Part number

Dim “L”
(mm)

3SW/TTA060 Operating force/steam color N = 180gf/brown R = 260gf/red

0

3SW/TTA061 Operating force/steam color N = 180gf/brown R = 260gf/red

0.8

3SW/TTA062 Operating force/steam color N = 180gf/brown R = 260gf/red

1.0

3SW/TTA063 Operating force/steam color N = 180gf/brown R = 260gf/red

2.35

3SW/TTA064 Operating force/steam color N = 180gf/brown R = 260gf/red

3.3
