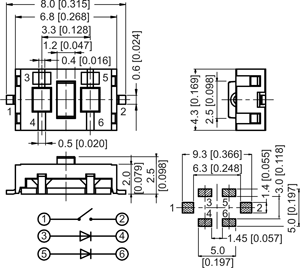

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-20°C to +70°C

Contact resistance

100mOhm max

Life

50,000 min

Insulation resistance

100MOhm min @500V DC

Base

Nylon, white

Dielectric strengh

250V AC/minute

Stem

Nylon

Operating force

160gf

Terminal

Brass, silver cladding

Stroke

0.25mm





3SW/TML
