Tact Switch # 26

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

1.5mA @5V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

200,000 min

Insulation resistance

100MOhm min @500V DC

Base

Nylon, UL 94V-0, black

Dielectric strengh

250V AC/minute

Cover

Stainless steel

Operating force

185/260gf

Steam

Nylon

Stroke

0.15mm

Terminal

Brass, silver plated

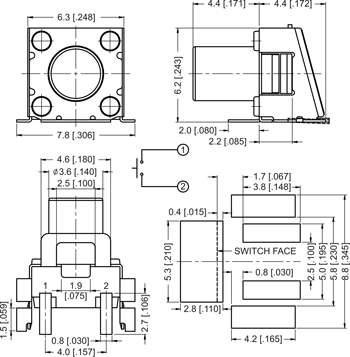

6 x 6mm right angle SMT switch, w/supporting terminal, 4.4mm stem

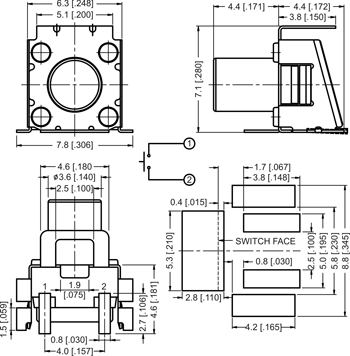

6 x 6mm right angle SMT switch, w/supporting terminal & tab, 4.4mm stem

Part number:   3SW/TTA31

Part number:   3SW/TTA31K

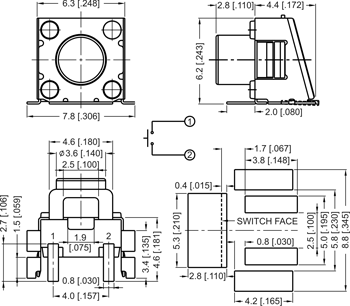

6 x 6mm right angle SMT switch, w/supporting terminal, 2.8mm stem

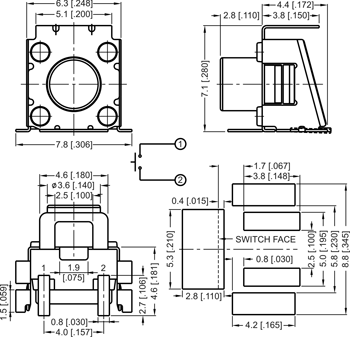

6 x 6mm right angle SMT switch, w/supporting terminal & tab, 2.8mm stem

Part number:   3SW/TTA32

Part number:   3SW/TTA32K
