Tact Switch 29

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

50,000 min

Insulation resistance

100MOhm min @500V DC

Cover

Ni silver

Dielectric strengh

250V AC/minute

Base

Nylon, UL94V-0, black

Operating force

160/320gf

Stem

Nylon, UL94V-0

Stroke

0.45mm

Terminal

Brass, silver plated

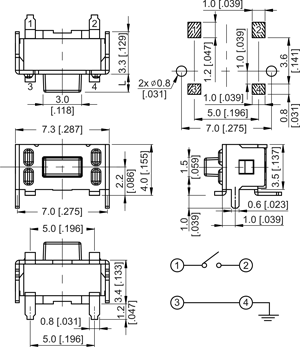

4 x 7 right angle SMT switch, with support terminal & front ground terminal

Part number

Dim “L”
(mm)

3SW/TTAC01

0.7

3SW/TTAC02

1.4

3SW/TTAC05

5.0

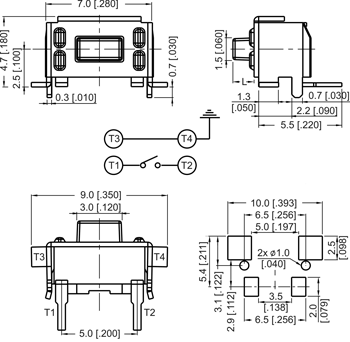

4 x 7 right angle SMT switch, without support terminal & with side ground terminal

Part number

Dim “L”
(mm)

3SW/TTAN21

0.7

3SW/TTAN22

1.4

4 x 7 right angle SMT switch, with support terminal & side ground terminal

Part number

Dim “L”
(mm)

3SW/TTA021

0.7

3SW/TTA022

1.4
