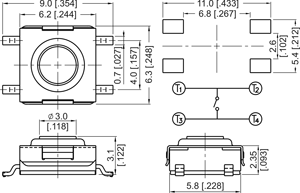

6 x 6mm surface mount switch

Part number

Color of stem / Operating force

3SW/TS0MW66N

BROWN / 160gf

6 x 6mm surface mount switch, w/ground terminal

Part number

Color of stem / Operating force

3SW/TSGMW66N

BROWN / 160gf

6 x 6mm through hole switch

Part number

Color of stem / Operating force

3SW/TS0HW66N

BROWN / 160gf

Specification

Rating

50mA @24V DC

Operating Temp.

-25°C to +70°C

Contact Resistance

100mOhm max

Life

100,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Stainless steel / Ni silver

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

160gf

Stem

Nylon, UL94V-0, brown /
Brass, Ni plated

Stroke

0.25mm

Terminal

Brass, silver plated
