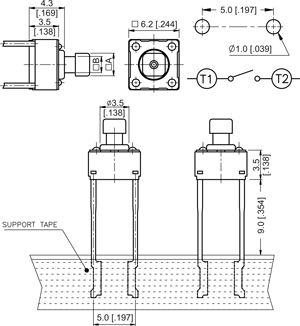

6 x 6mm switch, radial taping type, round stem
|
|
Part number
|
Dim “H”
|
Color of stem / Operating force
|
|
|
|
4.3
[.169]
|
K = BLACK / 100gf
N = BROWN / 160gf
R = RED / 260gf
S = SALMON / 320gf
Y = YELLOW / 520gf
|
|
|
5.0
[.197]
|
|
|
7.0
[.275]
|
|
|
9.5
[.374]
|
|
|
13.0
[.512]
|
|
6 x 6mm switch, radial taping type, square stem
|
|
Part number
|
Dim “A”
|
Dim “B”
|
Color of stem / Operating force
|
|
|
|
2.4
[.095]
|
1.6
[.063]
|
K = BLACK / 100gf
N = BROWN / 160gf
R = RED / 260gf
S = SALMON / 320gf
Y = YELLOW / 520gf
|
|
|
2.8
[.110]
|
2.0
[.079]
|
|
|
|
|
|
Specification
|
|
Rating
|
50mA @12V DC
|
Operating Temperature
|
-25°C to +70°C
|
|
Contact Resistance
|
100mOhm max
|
Life
|
300,000 min
|
|
Insulation Resistance
|
100MOhm min @500V DC
|
Cover
|
Steel
|
|
Dielectric Strengh
|
250V AC/minute
|
Base
|
Nylon, UL94V-0, black
|
|
Operating Force
|
100/160/260/320/520gf
|
Stem
|
Nylon, UL94V-0
|
|
Stroke
|
0.25mm
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
