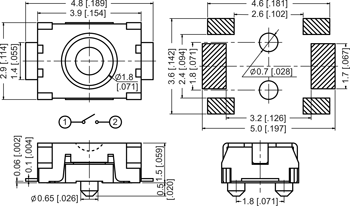

2.9 x 3.9mm vertical push switch, surface mount, flat terminals

Part number: 3SW/TMP F

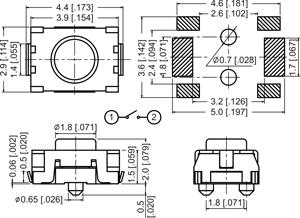

2.9 x 3.9mm vertical push switch, surface mount, bending terminals

Part number:   3SW/TMP L

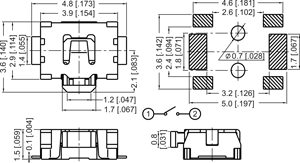

2.9 x 3.9mm side push switch, surface mount, flat terminals

Part number:   3SW/TMPT F

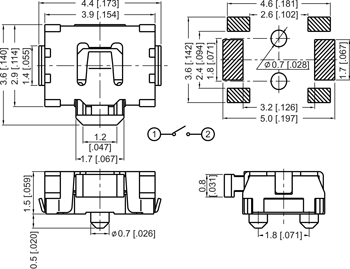

2.9 x 3.9mm side push switch, surface mount, bending terminals

Part number:   3SW/TMPT L

Specification

Rating

50mA @12V DC

Operating Temperature

-25°C to +70°C

Contact Resistance

100mOhm max

Life

100,000 min

Insulation Resistance

100MOhm min @100V DC

Cover

Stainless steel

Dielectric Strengh

100V AC/minute

Base

LCP thermoplastic, white

Operating Force

Slide push = 220gf
Vertical push = 160gf

Stem

LCP thermoplastic, black

Stroke

Slide push = 0.2mm
Vertical push = 0.13mm

Terminal

Brass, silver / gold plated
