Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555
|
|
|
|
|

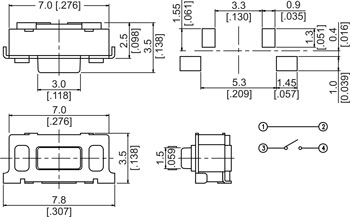

Side-push tact switch, 1mm long stem, surface mount, without pilot
|
|
Part number
|
Color of stem
|
Operating force
|
|
|
3SW/T1800K2
|
BLACK
|
160gf
|
|
3SW/T1800W3
|
WHITE
|
260gf
|
|

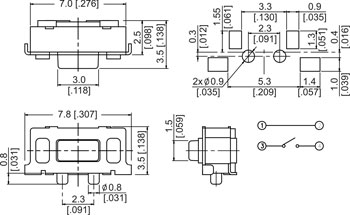

Side-push tact switch, 1mm long stem, surface mount, base with pilot
|
|
Part number
|
Color of stem
|
Operating force
|
|
|
3SW/T180EK2
|
BLACK
|
160gf
|
|
3SW/T180EW3
|
WHITE
|
260gf
|
|

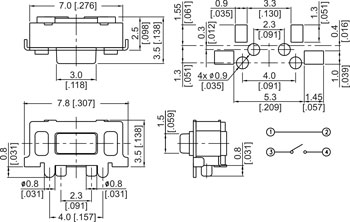

Side-push tact switch, 1mm long stem, surface mount, base & cover with pilot
|
|
Part number
|
Color of stem
|
Operating force
|
|
|
3SW/T18EPK2
|
BLACK
|
160gf
|
|
3SW/T18EPW3
|
WHITE
|
260gf
|
|

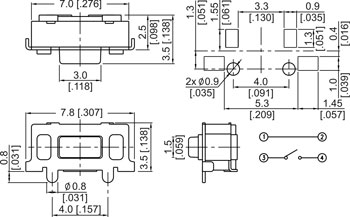

Side-push tact switch, 1mm long stem, surface mount, cover with pilot
|
|
Part number
|
Color of stem
|
Operating force
|
|
|
3SW/T180PK2
|
BLACK
|
160gf
|
|
3SW/T180PW3
|
WHITE
|
260gf
|
|
|
|
|
|
Specification
|
|
Rating
|
50mA @12V DC
|
Operating Temp.
|
-25°C to +70°C
|
|
Contact Resistance
|
100mOhm max
|
Life
|
30,000 cycles
|
|
Insulation Resistance
|
100MOhm min @500V DC
|
Cover
|
Steel, Ni plated
|
|
Dielectric Strengh
|
250V AC/minute
|
Base
|
Nylon, UL94V-0, white
|
|
Operating Force
|
160/260gf
|
Stem
|
Nylon, UL94V-0, black (160gf) & white (260gf)
|
|
Stroke
|
0.25mm
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
