Tact Switch # 36

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

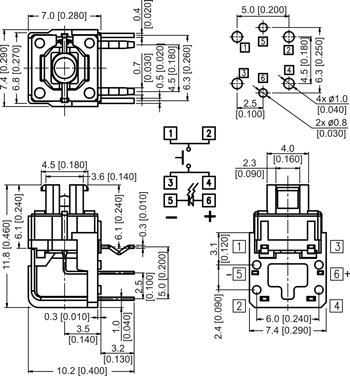

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-40°C to +85°C

Contact resistance

100mOhm max

Life

500,000 min

Insulation resistance

100MOhm min @500V DC

Base

LCP, black

Dielectric strengh

250V AC/minute

Stem

LCP

Operating force

100/160/260gf

Terminal

Brass, silver plated

Stroke

0.2mm





Part number:     3SW/TLR
