Tact Switch # 30

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

25mA @24V DC

Operating temperature

-40°C to +85°C

Contact resistance

100mOhm max

Life

100,000 min

Insulation resistance

100MOhm min

Cover

Stainless steel

Dielectric strengh

300V AC/minute

Base

LCP thermoplastic, black

Operating force

200/300/450gf

Stem

Silicone rubber

Stroke

0.3/0.35/0.45mm

Terminal

PhBz, silver plated

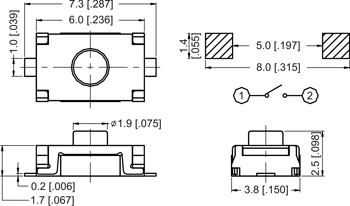

3.8 x 6mm SMT switch, thinner type, flat terminal

Part number

Stroke
(mm)

Operating force / color of steam

3SW/TTEFN

0.3

200gf / brown

3SW/TTEFR

0.35

300gf / red

3SW/TTEFS

0.456

450gf / salmon

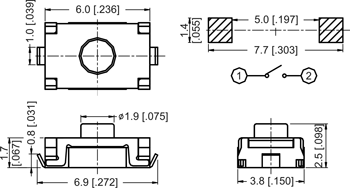

3.8 x 6mm SMT switch, thinner type, bending terminal

Part number

Stroke
(mm)

Operating force / color of steam

3SW/TTELN

0.3

200gf / brown

3SW/TTELR

0.35

300gf / red

3SW/TTELS

0.45

450gf / salmon
