Tact Switch # 34

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

200,000 min

Insulation resistance

100MOhm min @500V DC

Base

Nylon, black

Dielectric strengh

250V AC/minute

Stem

Nylon

Operating force

100/160/260gf

Terminal

Brass, silver cladding

Stroke

0.2mm

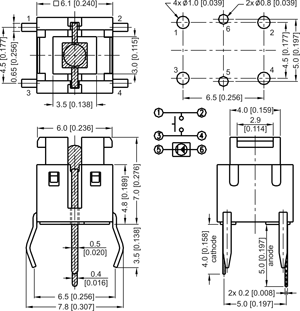

Through hole switch, illuminated, flat LED

Part number

3SW/TLT -F-

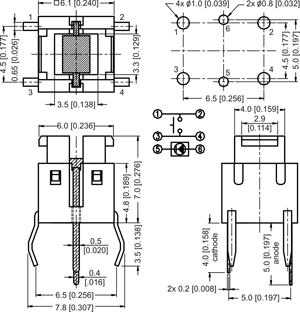

Through hole switch, illuminated, round LED

Part number

3SW/LT -R-

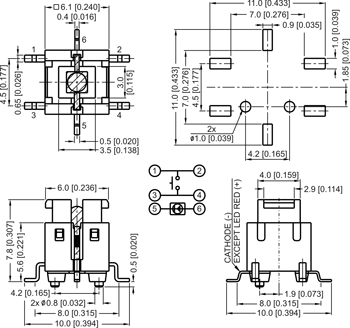

SMT switch, illuminated, round LED

Part number

3SW/LM -R-
