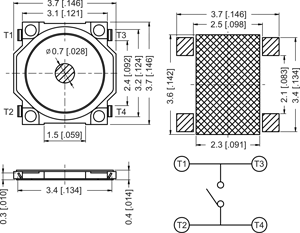

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-20°C to +70°C

Contact resistance

100mOhm max

Life

50,000 min

Insulation resistance

100MOhm min @100V DC

Base

Nylon, UL 94V-0, black

Dielectric strengh

100V AC/minute

Contact

Stainless steel w/silver cladding

Operating force

160/235gf

Terminal

PhBz with silver cladding

Stroke

0.15mm





3.7 x 3.7mm surface mount switch, 0.4mm thick

Part number:   3SW/TT3BL
