Tact Switch # 33

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-25°C to +70°C

Contact resistance

100mOhm max

Life

200,000 min

Insulation resistance

100MOhm min @500V DC

Cover

Stainless steel

Dielectric strengh

250V AC/minute

Base

LCP Thermoplastic, black

Operating force

100/160/260gf

Stem

LCP Thermoplastic / Brass w/Ni

Stroke

0.25mm

Terminal

Brass, silver plated

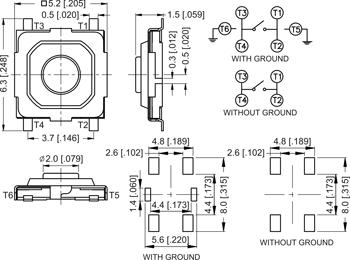

5 x 5mm SMT switch, raised stem, gull wing terminals

Part number

3SW/TTM -3S-

5 x 5mm SMT switch, flat stem, gull wing terminals

Part number

3SW/TTM -2S-

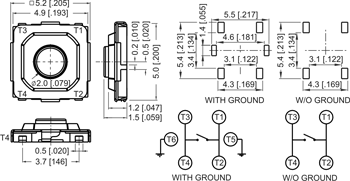

5 x 5mm SMT switch, raised stem, bending terminals

Part number

3SW/TTJ -3S-

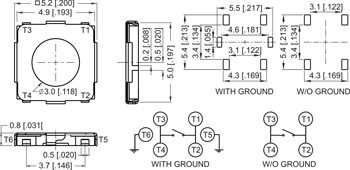

5 x 5mm SMT switch, flat stem, bending terminals

Part number

3SW/TTJ -2S-
