Tact Switch # 22

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Fig.

Specifications

Rating

50mA @12V DC

Life

50,000 min

Operating force

180gf

Cover

Ni silver

Operating temperature

-25°C to +70°C

Base

Nylon, UL 94V-0, black





Stem

Nylon, UL 94V-0, brown

Terminal

Brass, silver plated

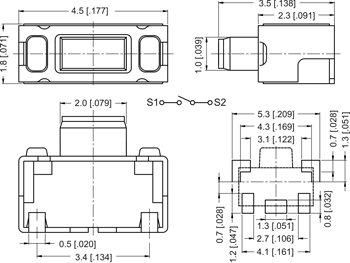

1.8 x 4.5mm right angle switch, sealed type, w/o post

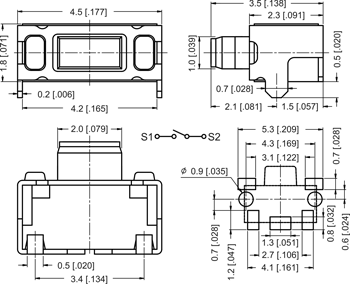

1.8 x 4.5mm right angle switch, sealed type, with cover post

Part number:   3SW/TMTA00

Part number:   3SW/TMTA0C

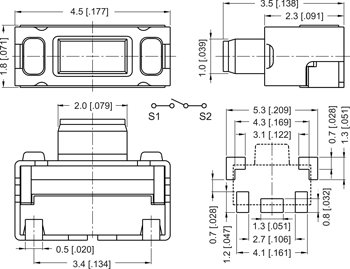

1.8 x 4.5mm right angle switch, sealed type, w/o post, washable

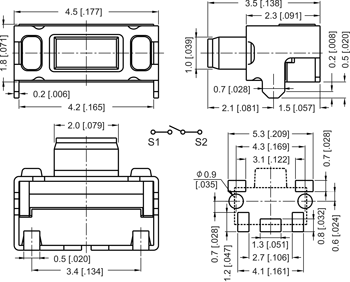

1.8 x 4.5mm right angle switch, sealed type, with cover post, washable

Part number:   3SW/TMTAW0

Part number:   3SW/TMTAWC
