Part number:     3SW/DTTUU-

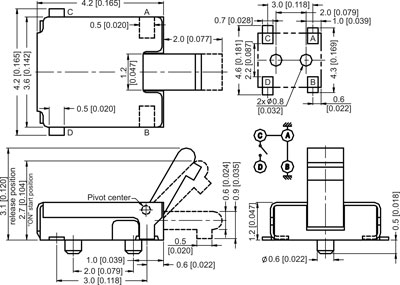

Flat terminal, w/o post

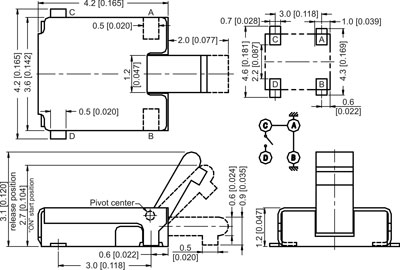

Flat terminal, with post

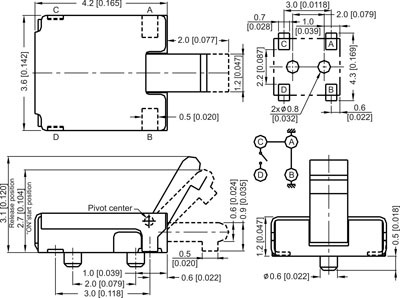

Bending terminal, w/o post

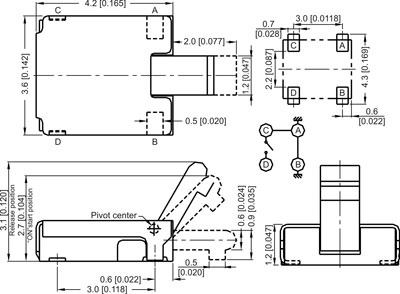

Bending terminal, with post

Specifications

Rating

50mA @3V DC ~ 10mA@5VDC

Operating Temperature

-10°C to +60°C

Contact Resistance

1 Ohm max

Life

50,000 cycles

Insulation Resistance

100MOhm min

Cover

Nickel silver

Dielectric Strength

100V AC/minute

Base

PA9T, black

Operating Force

40gf max

Stem

PA9T, black

Stroke

60°

Terminal

PhBz, silver plated
