Detector Switch # 5

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Part number:     3SW/DTTE-

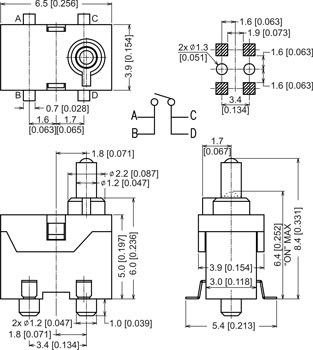

300/DTTEM0

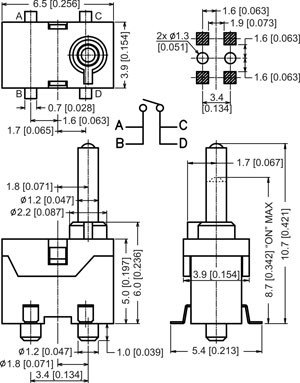

300/DTTEML

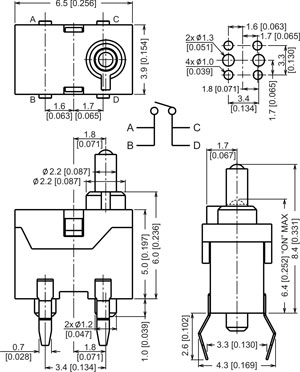

300/DTTEH0

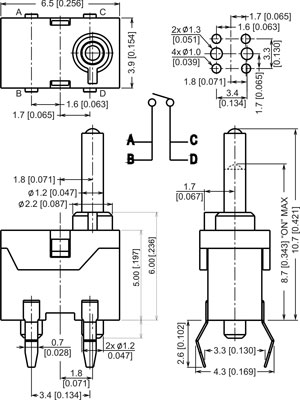

300/DTTEHL

Specifications

Rating

5mA @5V DC max

Operating Temperature

-20°C to +70°C

Contact Resistance

500mOhm max

Life

50,000 cycles

Insulation Resistance

100MOhm @250V DC

Cover

Nylon, UL94V-0, black

Dielectric Strength

250V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

30gf max

Terminal

PhBz, silver plated

Stroke

2.0mm max
