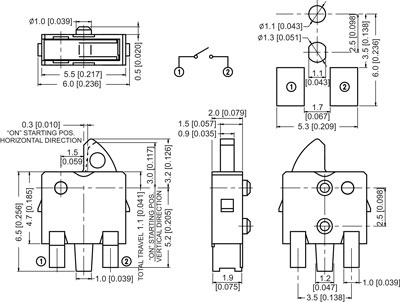

Right side operation, w/o ground terminal
|

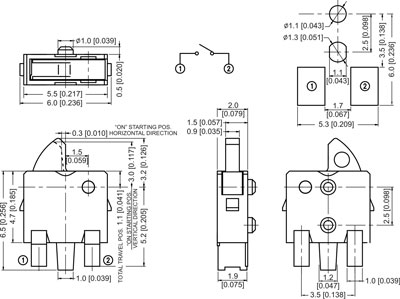

Left side operation, w/o ground terminal
|
|
|
|
|

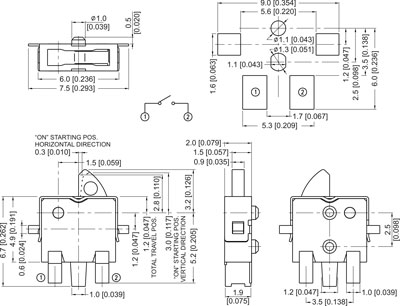

Right side operation, with ground terminal
|

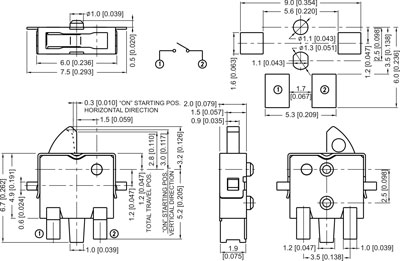

Left side operation, with ground terminal
|
|
|
|
|
|
|
|
|
Specifications
|
|
Rating
|
50mA @20V DC max
|
Operating Temperature
|
-10°C to +60°C
|
|
Contact Resistance
|
1 Ohm max
|
Life
|
100,000 cycles
|
|
Insulation Resistance
|
100MOhm @100V DC
|
Cover
|
Copper alloy, tin plated
|
|
Dielectric Strength
|
100V AC/minute
|
Base
|
Nylon, UL94V-0, black
|
|
Operating Force
|
40gf max
|
Stem
|
Nylon, UL94V-0, black
|
|
Stroke
|
2.15mm max
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
