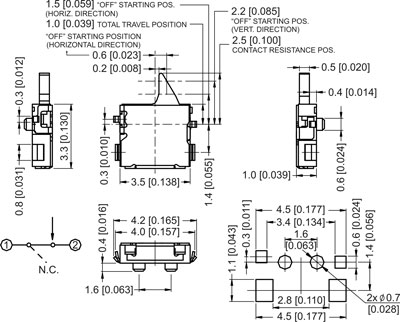

Part number:     3SW/DTELHL-

Specifications

Rating

50uA @3V DC min
1mA @5V DC max

Operating Temp.

-10°C to +60°C

Contact Resistance

2 Ohm max

Life

50,000 cycles

Insulation Resistance

100MOhm min @100V DC

Cover

Stainless Steel

Dielectric Strength

100V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

35gf max

Stem

Nylon, UL94V-0, black

Stroke

1.55mm

Terminal

Brass, silver plated
