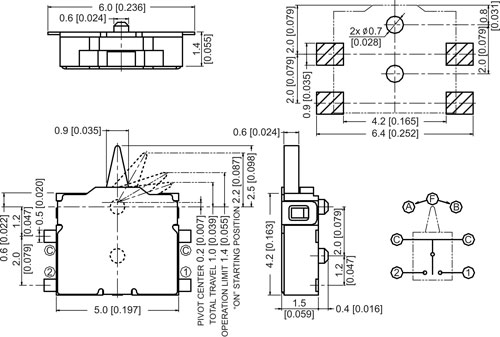

Part number:     3SW/DTDTEP

Specifications

Rating

10mA @5V DC max

Operating Temp.

-10°C to +60°C

Contact Resistance

500mOhm max

Life

100,000 cycles

Insulation Resistance

100MOhm min

Cover

Stainless Steel

Dielectric Strength

100V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

30gf max

Stem

Nylon, UL94V-0, black

Stroke

1.5mm

Terminal

PhBz, silver plated
