Detector Switch # 7

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Part numbers

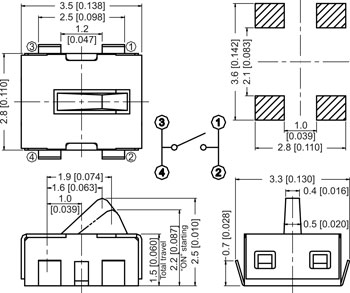

Part number: 3SW/DTBTE0

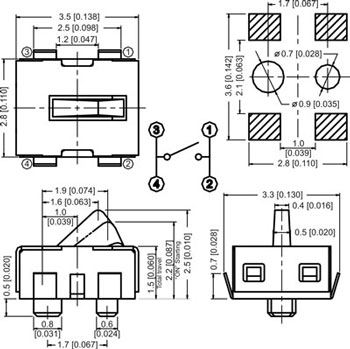

Part number: 3SW/DTBTEP

Specifications

Rating

1mA @5V DC max

Operating Temperature

-10°C to +60°C

Contact Resistance

2 Ohm max

Life

100,000 cycles

Insulation Resistance

100MOhm @100V DC

Cover

Stainless steel

Dielectric Strength

100V AC/minute

Base

LCP, black

Operating Force

50gf max

Stem

LCP, black

Stroke

1.03mm max

Terminal

PhBz, silver plated
