Tact Switch # 8

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

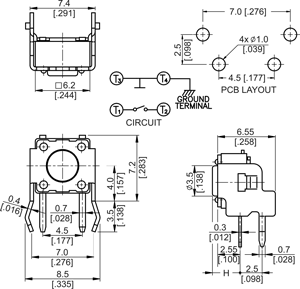

6 x 6mm through hole switch, right angle

Part number

Dim “H”

Color of stem / Operating force

SW/TS0A61

3.15
[.124]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TS0A62

3.85
[.152]

SW/TS0A63

5.85
[.230]

SW/TS0A65

8.35
[.329]

SW/TS0A66

11.85
[.467]

6 x 6mm through hole switch, right angle, w/ground terminal

Part number

Dim “H”

Color of stem / Operating force

SW/TS0G61

4.3
[.169]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TS0G62

5.0
[.197]

SW/TS0G63

7.0
[.275]

SW/TS0G65

9.5
[.374]

SW/TS0G66

13.0
[.512]

Specification

Rating

50mA @12V DC

Operating Temp.

-25°C to +70°C

Contact Resistance

100mOhm max

Life

300,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Steel, tin plated

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, black / brown

Operating Force

100/160/260/320/520gf

Stem

Nylon, UL94V-0

Stroke

0.25mm

Terminal

Brass, silver plated
