6 x 6mm thinner type switch, surface mount, flat

Part number

Dim “H”

Color of stem / Operating force

SW/TS0F60

2.0
[.079]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TS0F61

2.5
[.098]

SW/TS0F62

3.1
[.122]

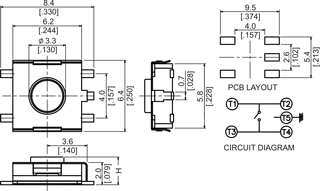

6 x 6mm thinner type switch, surface mount, flat, w/ground terminal

Part number

Dim “H”

Color of stem / Operating force

SW/TSGF60

2.0
[.079]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TSGF61

2.5
[.098]

SW/TSGF62

3.1
[.122]

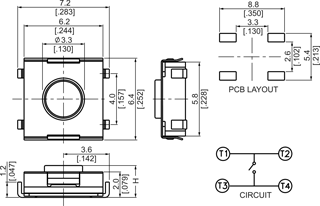

6 x 6mm thinner type switch, surface mount, bend outward

Part number

Dim “H”

Color of stem / Operating force

SW/TS0L60

2.0
[.079]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TS0L61

2.5
[.098]

SW/TS0L62

3.1
[.122]

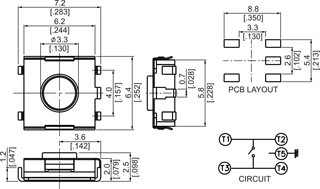

6 x 6mm thinner type switch, surface mount, bend outward, w/ground terminal

Part number

Dim “H”

Color of stem / Operating force

SW/TSGL60

2.0
[.079]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

Y = YELLOW / 520gf

SW/TSGL61

2.5
[.098]

SW/TSGL62

3.1
[.122]

Specification

Rating

50mA @12V DC

Operating Temp.

-25°C to +70°C

Contact Resistance

100mOhm max

Life

300,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Stainless steel / Ni silver

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

100/160/260/320/520gf

Stem

Nylon, UL94V-0 / Silicone (200gf)

Stroke

0.25mm

Terminal

Brass, silver plated
