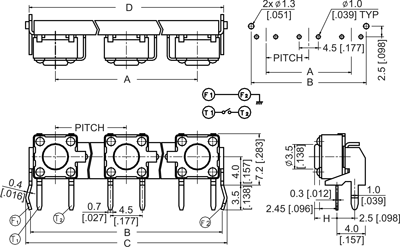

6 x 6mm switch, multiple type
|
|
|
1. PITCH = 10,15,18 & 20mm
A = (N-1) x PITCH
B = A + 7
C = B + 1.7
D = B + 0.4
2. PITCH = 14mm
A = (N-1) x PITCH
B = A + 8
C = B +1.5
D = B + 0.4
"N" designates number of switches
|
|
Part number
|
Dim “H”
|
Color of stem / Operating force
|
|
|
3.15 [.124]
|
K = BLACK / 100gf
N = BROWN / 160gf
R = RED / 260gf
S = SALMON / 320gf
Y = YELLOW / 520gf
* Pitch in mm
|
|
|
3.85 [.152]
|
|
|
5.85 [.230]
|
|
|
6.15 [.242]
|
|
|
8.35 [.329]
|
|
|
11.85 [.467]
|
|
|
6.15 [.242]
|
|
|
6.15 [.242]
|
|
|
|
|
|
Specification
|
|
Rating
|
50mA @12V DC
|
Operating Temperature
|
-25°C to +70°C
|
|
Contact Resistance
|
100mOhm max
|
Life
|
300,000 min
|
|
Insulation Resistance
|
100MOhm min @500V DC
|
Cover
|
Stainless steel, tin plated
|
|
Dielectric Strengh
|
250V AC/minute
|
Base
|
Nylon, UL94V-0, black
|
|
Operating Force
|
100/160/260/320/520gf
|
Stem
|
Nylon, UL94V-0
|
|
Stroke
|
0.25mm
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
