Tact Switch # 2

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

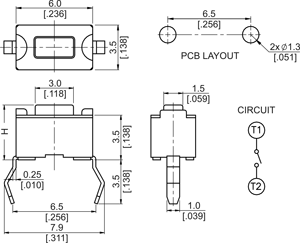

3.5 x 6mm through hole switch

Part number

Dim “H”

Color of stem

Operating force

3SW/TS0031N

4.3
[.169]

BROWN

160gf

3SW/TS0031R

RED

260gf

3SW/TS0031S

SALMON

320gf

3SW/TS0031Y

YELLOW

520gf

3SW/TS0032N

5.0
[.197]

BROWN

160gf

3SW/TS0032R

RED

260gf

3SW/TS0032S

SALMON

320gf

3SW/TS0032Y

YELLOW

520gf

3.5 x 6mm surface mount (bend outward) tact switch

Part number

Dim “H”

Color of stem

Operating force

3SW/TSM031N

4.3
[.169]

BROWN

160gf

3SW/TSM031R

RED

260gf

3SW/TSM031S

SALMON

320gf

3SW/TSM031Y

YELLOW

520gf

3SW/TSM032N

5.0
[.197]

BROWN

160gf

3SW/TSM032R

RED

260gf

3SW/TSM032S

SALMON

320gf

3SW/TSM032Y

YELLOW

520gf

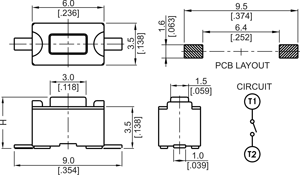

3.5 x 6mm surface mount (flat) tact switch

Part number

Dim “H”

Color of stem

Operating force

3SW/TSML31N

4.3
[.169]

BROWN

160gf

3SW/TSML31R

RED

260gf

3SW/TSML31S

SALMON

320gf

3SW/TSML31Y

YELLOW

520gf

3SW/TSML32N

5.0
[.197]

BROWN

160gf

3SW/TSML32R

RED

260gf

3SW/TSML32S

SALMON

320gf

3SW/TSML32Y

YELLOW

520gf

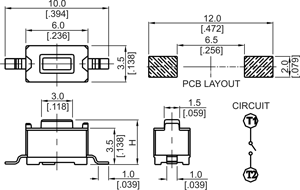

3.5 x 6mm surface mount (gull-wing) tact switch

Part number

Dim “H”

Color of stem

Operating force

3SW/TSMF31N

4.3
[.169]

BROWN

160gf

3SW/TSMF31R

RED

260gf

3SW/TSMF32N

5.0
[.197]

BROWN

160gf

3SW/TSMF32R

RED

260gf

Specification

Rating

50mA @12V DC

Operating Temperature

-25°C to +70°C

Contact Resistance

100mOhm max

Life

30,000 cycles

Insulation Resistance

100MOhm min @500V DC

Cover

Stainless steel

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, white

Operating Force

160/260/320/520gf

Stem

Nylon, UL94V-0

Stroke

0.25mm

Terminal

Brass, silver plated
