Part number: 3SW/DSTD - - S

DIP SLIDE SWITCH,
2~12 POS.,
TRI-STATE,
0.100" (2.54mm) PITCH

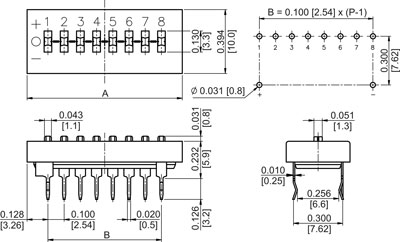

# of pos.

Dim. “A”

Dim “B”

2

.357 (9.06)

.100 (2.54)

3

.457 (11.60)

.200 (5.08)

4

.557 (14.14)

.300 (7.62)

5

.657 (16.68)

.400 (10.16)

6

.757 (19.22)

.500 (12.7)

7

.857 (21.76)

.600 (15.24)

8

.957 (24.30)

.700 (17.78)

9

1.057 (26.84)

.800 (20.32)

10

1.157 (29.38)

.900 (22.86)

12

1.357 (34.46)

1.100 (27.94)

Specification

Function

3 switching positions

Operating Force

1000 gf max

Non-switching Rating

100 mA @50V DC

Stroke

1.0 mm

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 PBT thermoplastic, black

Contact Resistance

50 mOhm max. initial

Contact/Terminal Material

Copper alloy/brass, gold plated

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 nylon, white

Dielectric Strength

500V AC for 1 minute

Life

2000 operations
