Part number: 3SW/DS - - - S - -

DIP SLIDE SWITCH,
1~12 POS., SPST,
STRAIGHT,
0.100" (2.54mm) PITCH

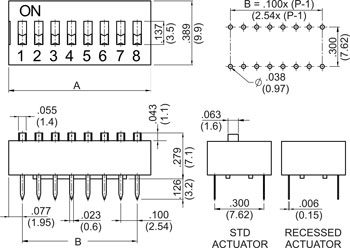

# of pos.

Dim. “A”

Dim “B”

1

.153 (3.9)

-

2

.254 (6.44)

.100 (2.54)

3

.354 (8.98)

.200 (5.08)

4

.454 (11.52)

.300 (7.62)

5

.554 (14.06)

.400 (10.16)

6

.654 (16.6)

.500 (12.7)

7

.754 (19.14)

.600 (15.24)

8

.854 (21.68)

.700 (17.78)

9

.954 (24.22)

.800 (20.32)

10

1.054 (26.76)

.900 (22.86)

12

1.254 (31.84

1.100 (27.94)

Specification

Function

SPST

Operating Force

1000 gf max

Non-switching Rating

100 mA @50V DC

Stroke

2.0 mm

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 PBT thermoplastic

Contact Resistance

50 mOhm max. initial

Contact Material

PhBz, gold plated over Ni

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 PBT white thermoplastic

Dielectric Strength

500V AC for 1 minute

Top Seal Material

Polyester film

Capacitance

5 pF max

Life

2000 operations
