Dip-Slide Switch # 3

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

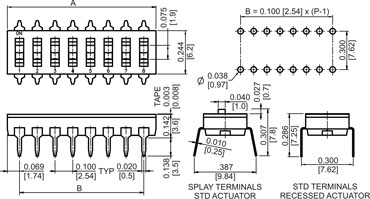

Part number: 3SW/DSND - - - - S -

DIP SLIDE SWITCH,
1~12 POS., SPST,
STRAIGHT,
SPLAY FOR AUTO
INSERTION,
0.100" (2.54mm) PITCH

# of pos.

Dim. “A”

Dim “B”

1

.137 (3.48)

-

2

.237 (6.02)

.100 (2.54)

3

.337 (8.56)

.200 (5.08)

4

.437 (11.1)

.300 (7.62)

5

.537 (13.64)

.400 (10.16)

6

.637 (16.18)

.500 (12.7)

7

.737 (18.72)

.600 (15.24)

8

.837 (21.26)

.700 (17.78)

9

.937 (23.8)

.800 (20.32)

10

1.037 (26.34)

.900 (22.86)

12

1.237 (31.42)

1.100 (27.94)

Specification

Function

SPST

Operating Force

1000 gf max

Non-switching Rating

100 mA @50V DC

Stroke

1.0 mm

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 PPS high temp. thermoplastic, black

Contact Resistance

50 mOhm max. initial

Contact Material

Copper alloy, gold plated over Ni

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 Nylon, white

Dielectric Strength

500V AC for 1 minute

Top Seal Material

Kapton

Capacitance

5 pF max

Terminal

Brass, gold plated

Life

2000 operations
