Dip-Slide Switch # 8

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

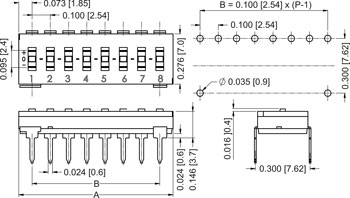

Part number: 3SW/DSTI - - - S -

DIP SLIDE SWITCH,
4, 8, 9, 10 POS.,
LOW PROFILE,
SSTRAIGHT,
TRI-STATE,
0.100" (2.54mm) PITCH

# of pos.

Dim. A

Dim. B

4

.446 (11.32)

.300 (7.62)

8

.846 (21.48)

.700 (17.78)

9

.946 (24.02)

.800 (20.32)

10

1.046 (26.56)

.900 (22.86)

Specification

Function

3 switching positions

Operating Force

1000 gf max

Switching Rating

25 mA @24V DC

Stroke

0.8 mm

Contact Resistance

100 mOhm max.

Body Material

UL94V-0 high temp. nylon, black

Dielectric Strength

500V AC for 1 minute

Contact/Terminal Material

Copper alloy, gold plated over Ni

Actuator Material

UL94V-0 LCP thermoplastic, white

Top Seal Material

Kapton

Life

2000 operations
