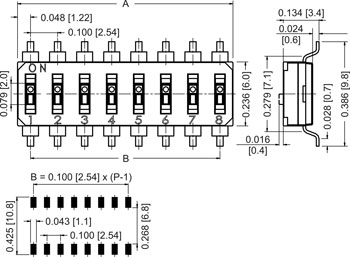

Part number: 3SW/DSEM - - - M -

DIP SLIDE SWITCH,
1~12 POS., SPST,
SURFACE MOUNT,
END STACKABLE,
0.100" (2.54mm) PITCH

# of pos.

Dim. “A”

Dim “B”

1

.096 (2.44)

-

2

.196 (4.98)

.100 (2.54)

3

.296 (7.52)

.200 (5.08)

4

.396 (10.06)

.300 (7.62)

5

.496 (12.6)

.400 (10.16)

6

.596 (15.14)

.500 (12.7)

7

.696 (17.68)

.600 (15.24)

8

.796 (20.22)

.700 (17.78)

9

.896 (22.76)

.800 (20.32)

10

0.996 (25.30)

.900 (22.86)

12

1.196 (30.38)

1.100 (27.94)

Specification

Function

SPST

Operating Force

1000 gf max

Switching Rating

25 mA @24V DC

Stroke

1.0 mm

Contact Resistance

100 mOhm max. @500V DC

Body Material

UL94V-0 high temp. nylon, black

Dielectric Strength

500V AC for 1 minute

Contact/Terminal Material

Copper alloy/brass, gold plated

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 LCP thermoplastic, white

Life

2000 operations

Top Seal Material

Kapton
