Part number: 3SW/DSHD - - - - M -

DIP SLIDE SWITCH,
2, 4, 6, 8, 10 POS., SPST,
SURFACE MOUNT,
0.05" (1.27mm) HALF PITCH

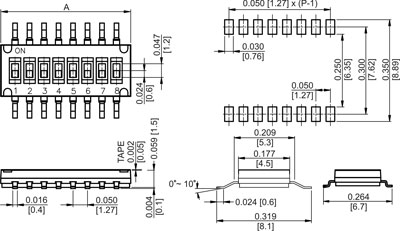

# of pos.

Dim. A

Dim. B

4

.446 (11.32)

.300 (7.62)

8

.846 (21.48)

.700 (17.78)

9

.946 (24.02)

.800 (20.32)

10

1.046 (26.56)

.900 (22.86)

Specification

Function

SPST

Operating Force

500 gf max

Non-switching Rating

100 mA @50V DC

Stroke

0.6 mm

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 high temp. nylon, black

Contact Resistance

100 mOhm max. initial

Contact/Tewrminal Material

Copper alloy/brass, gold plated

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 LCP white thermoplastic

Dielectric Strength

300V AC for 1 minute

Top Seal Material

Kapton

Life

1000 operations
