Part number: 3SW/DPES - -

DIP PIANO SWITCH,
2~10 POS., SPST,
STRAIGHT,
END-STACKABLE
0.100" (2.54mm) PITCH

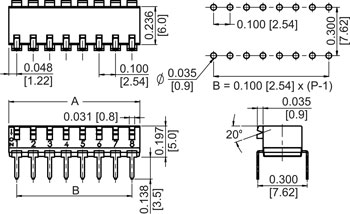

# of pos.

Dim. “A”

Dim “B”

2

.196 (4.98)

.100 (2.54)

4

.396 (10.06)

.300 (7.62)

6

.596 (15.14)

.500 (12.7)

8

.796 (20.22)

.700 (17.78)

10

.996 (25.30)

.900 (22.86)

Specification

Function

SPST

Operating Temperature

-20°C to +85°C

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 Nylon black thermoplastic

Contact Resistance

100 mOhm @500V DC

Contact Material

Copper alloy, gold plated

Insulation Resistance

100 MOhm @500V DC

Actuator Material

UL94V-0 LCP white thermoplastic

Dielectric Strength

100V AC for 1 minute

Terminal

Brass, gold plated

Operating Force

800 gf max

Life

2000 operations

Storage Temperature

-40°C to +85°C
