Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555
|
|
|
|
|
|

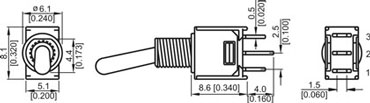

PCB Layout
|
|
Code
|
Switching position
|
|
|
|
|
|
A
|
ON
|
NONE
|
ON
|
|
B
|
ON
|
NONE
|
(ON)
|
|
C
|
ON
|
OFF
|
ON
|
|
D
|
(ON)
|
OFF
|
(ON)
|
|
E
|
ON
|
OFF
|
(ON)
|
|
Term. comm.
|
2-3
|
OPEN
|
2-1
|
|
|
|
|
|
|
|
Specifications
|
|
Function
|
SPDT
|
Operating Temperature
|
-30°C to +85°C
|
|
Rating
|
See plating option
|
Case
|
DAP
|
|
Contact Resistance
|
10mOhm initial
|
Actuator
|
Copper alloy, Cr plated
|
|
Insulation Resistance
|
1000MOhm min
|
Contact & Terminal
|
Copper alloy, Ag plated
|
|
Dielectric Strengh
|
1500V RMS
|
Bushing
|
Copper alloy, Ni plated
|
|
Life
|
50,000 cycles
|
Support Bracket
|
Copper alloy, tin plated
|
|
|
|
|
|
Actuator options
|
|
Use only with bushing codes "E", "E1", "F", "F1"
|
Use only with bushing codes "G", "G1", "J", "J1"
|
|
Code “1”
|
Code “2”
|
Code “3”
|
Code “4”
|
Code “5”
|
|
|
|
|
|
|
|
Locking lever (bushing code not required unless non-threaded bushing "N" (6N or 7N) ordered)
|
|
Code “6”
|
Code “7”
|
|
|
|
|
|
|
Bushing options
|
|
|
Code
|
Thread
|
|
E
|
10-48 UNS
|
|
E1
|
None
|
|
|
|
Code
|
Thread
|
|
G
|
1/4-40 UNS
|
|
G1
|
None
|
|
|
|
Code
|
Thread
|
|
F
|
10-48 UNS
|
|
F1
|
None
|
|
|
|
Code
|
Thread
|
|
J
|
1/4-40 UNS
|
|
J1
|
None
|
|
|
|
|
|
Termination options
|
|
Solder, code “B”
|
PCB, code “C”
|
Wire wrap, code “D”
|
|
|
|
|
|
|
|
Contact plating options
|
|
Code
|
Contact plating
|
Terminal plating
|
Rating
|
|
Q
|
Silver
|
Silver
|
3A @120V AC or 28V DC; 1.5A @250V AC
|
|
R
|
Gold over nickel
|
Gold over nickel
|
0.4VA max @20V AC or DC max
|
|
G
|
Gold over silver
|
Gold over silver
|
0.4VA max @20V AC or DC max
3A @120V AC or 28V DC; 1.5A @250V AC
|
|
|
|
|
|
|
|
Vinyl cap option for code “1” actuator
|
Rubber hood sealing option for bushing G & J
|
|
|
|
Code
|
Color
|
|
A1
|
white
|
|
A2
|
black
|
|
A3
|
red
|
|
A4
|
yellow
|
|
A5
|
blue
|
|
|
|
|
Code
|
Thread
|
|
E1
|
1/4-40 UNS
|
|
|
|
|
|
|
|
|
