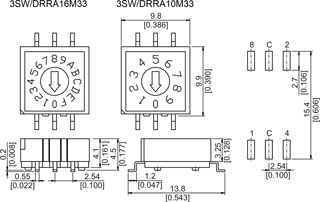

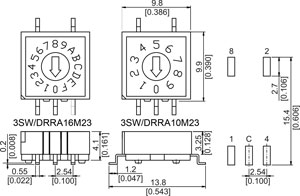

Part number: 3SW/DRRA - - M -





DIP ROTARY SWITCH,
SURFACE MOUNT,
10 & 16 POS.,
RECESSED ACTUATOR,
TERMINALS 3x2 & 3x3



Specification

Function

SPST

Operating Force

200 gf max

Non-switching Rating

100 mA @50V DC

Vibration & Shock

acc. with MIL-STD-202F

Switching Rating

25 mA @24V DC

Body Material

UL94V-0 Nylon, black

Contact Resistance

100 mOhm max. initial

Contact Material

Copper alloy, gold plated over Ni

Insulation Resistance

100 MOhm @250V DC

Actuator Material

UL94V-0 LCP white thermoplastic

Dielectric Strength

250V AC for 1 minute

Terminal

Brass, gold plated

Capacitance

5 pF max

Life

20000 operations
