Part Number: 3SW/LW2 - - - - - - -

Degree of temperature

Code

° C

Empty

85° C

T

85° C

Terminal option

Code

Option

F

Terminal type

W

Wire type

Operating force

Code

OF

1

0.5N

2

1N

3

1.5N

4

2N

5

3N

Function

Code

Function

Z

SPDT

T

SPST-NO

D

SPST-NC

Rating

Code

Value

1

0.1A @250V AC / 0.1A @125V AC / 0.1A @30V DC

2

5(2)A @250V AC / 5A @125V AC / 5A @30V DC

3

10(3)A @250V AC / 10A @125V AC

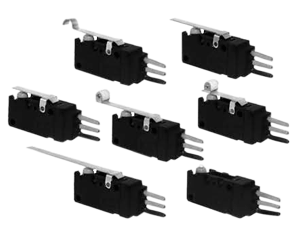

Lever

Code

Dim

Code

Dim

0

1

2

3

4

5

6
