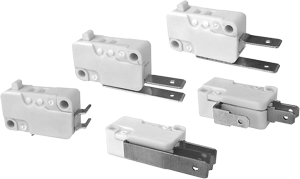

LM1-Custom Switch

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Part Number: 3SW/LM1 - - - - - -

Rating

Code

Value

1

01(0.05)A @250V AC / 0.1A @125V AC

2

3(1)A @250V AC / 3A @125V AC

3

6(2)A @ 250V AC / 6A @125V AC

4

10(3)A @250V AC / 10A @125V AC

5

16(4)A @250V AC / 16A @125V AC

Function

Code

Function

Z

SPDT

T

SPST-NO

D

SPST-NC

Operating force

Code

OF

1

0.15N

2

0.45N

3

0.75N

4

1N

5

1.7N

6

2.85N

7

4N

Lever

Code

Dim

Code

Dim

Code

Dim

Code

Dim

0

1

2

3

4

5

6





Terminals type

Code

A
(Quick-connect #250-1)

B
(Quick-connect #250-2)

C
(Quick-connect #250-3)

K
(Quick-connect #250-4)

Fig.

Code

D
(Quick-connect #187-0.5)

E
(Quick-connect #187-0.8)

F
(Solder)

G
(Screw)

Fig.

Code

H
(Upper PCB)

J
(Bottom PCB)

L
(Left side PCB)

R
(Right side PCB)

Fig.


Mounting options

Code

Empty
(International version)

U
(U.S. version)

Fig.
