Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555
|
|
|
|
|
|
|
Part number
|
Description
|
Part number
|
Description
|
|
3SW/DTATE100
|
5.3mm stem, 3.9mm max stroke, w/o post, w/o dust cover
|

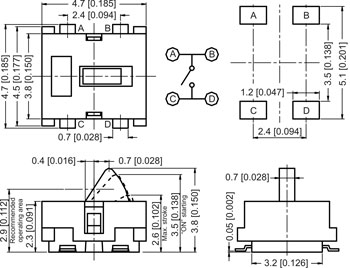

3SW/DTATE200
|
3.8mm stem, 2.6mm max stroke, w/o post, w/o dust cover
|
|
3SW/DTATE10K
|
5.3mm stem, 3.9mm max stroke, w/o post, with dust cover
|
3SW/DTATE20K
|
3.8mm stem, 2.6mm max stroke, w/o post, with dust cover
|
|
|
|
|
Part number
|
Description
|
Part number
|
Description
|
|

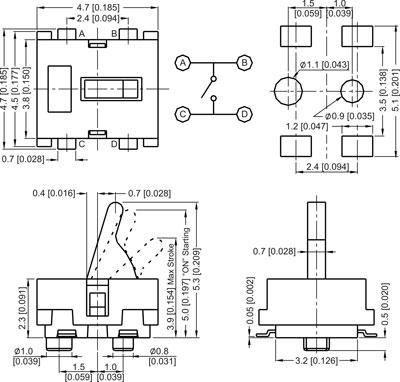

3SW/DTATE1C0
|
5.3mm stem, 3.9mm max stroke, with post, w/o dust cover
|

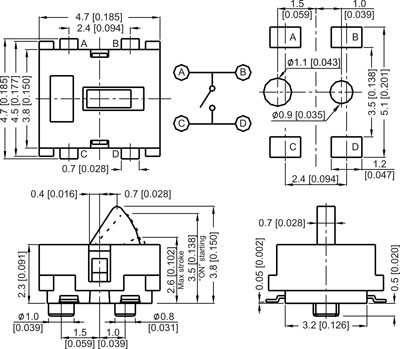

3SW/DTATE2C0
|
3.8mm stem, 2.6mm max stroke, with post, w/o dust cover
|
|
3SW/DTATE1CK
|
5.3mm stem, 3.9mm max stroke, with post, with dust cover
|
3SW/DTATE2CK
|
3.8mm stem, 2.6mm max stroke, with post, with dust cover
|
|
|
|
|
|
|
|
|
Specifications
|
|
Rating
|
1mA @5V DC max
|
Operating Temperature
|
-10°C to +60°C
|
|
Contact Resistance
|
1 Ohm max
|
Life
|
100,000 cycles
|
|
Insulation Resistance
|
100MOhm @100V DC
|
Cover
|
LCP, black
|
|
Dielectric Strength
|
100V AC/minute
|
Base
|
PA9T, black
|
|
Operating Force
|
30gf max
|
Stem
|
LCP, black
|
|
Stroke
|
2.6/3.9mm max
|
Terminal
|
Brass, silver plated
|
|
|
|
|
|
