LK1-8 Switch


	Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

Part Number: 3SW/LK1ZEP -

	Operating force option
		Code
		2	3	4
	OF max (N)	0.15	0.3	0.5
	RF max (mm)	0.02	0.05	0.1

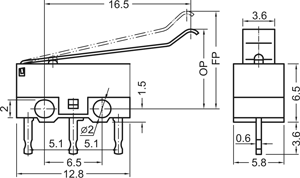

	PT max (mm)	1.1
	OT min (mm)	1.0
	MD max (mm)	11.5
	OP max	8.5

PRODUCT SPECIFICATION

Function

SPDT

Rating

3(0.5)A @250V AC / 3A @125V AC

Terminals

PCB straight

Contact resistance

30 mOhm max. initial

Insulation resistance

100 MOhm @500V DC

Test voltage

600V AC for 1 minute (between terminals of the same polarity)

1000V AC for 1 minute (between current-carrying metal parts and case, and between each terminal and non-current-carrying metal parts)

Vibration resistance

1.5mm @10~55Hz double amplitude

Electrical life

10,000 cycles min

Safety approvals

UL, CUL, TUV, CE, EK, CQC
